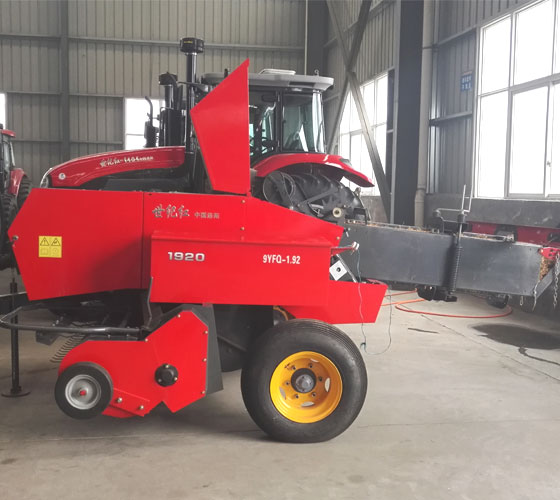

Square Baler
Product description :
1.With high strength steel frame, axle, hook and welded box beam structure, the smooth power transmission system ensures smooth operation. 2.Middle pickup impro...
Share With:

Product Features

TECHNICAL PARAMETERS

CASE

SERVICE SUPPORT

Product Features
1.With high strength steel frame, axle, hook and welded box beam structure, the smooth power transmission system ensures smooth operation.
2.Middle pickup improves pick-up ability
3.The body is compact and low, easy to observe the operation
TECHNICAL PARAMETERS

Model

9YFQ-1.92(DK1920)

9YFQ-2.50(DK2500)

Pickup width tine to tine(mm)

1782

2282

Inside panel to panel(mm)

1928

2428

Outside panel to panel(mm)

2264

2764

No. of tine bars

4

4

No.of tines

112

136

Length of stroke(mm)

550

550

Type of mechanism

Knotter

Protection

Shear bolt

Mini. Matched Tractor(KW)

40.4

Minimum weight of tractor(kg)

2360

PTO speed(rpm)

540

Dimension without Bale Chute(L×W×H)mm

4600×2600×1730

4600×3030×1730

Dimension with Bale Chute(L×W×H)mm

5500×2600×1730

5500×3030×1730

weight(kg)

1690

1750

efficiency

〉3000kg/hour
